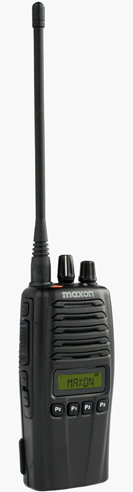

Maxon SP-7102 VHF Handheld Radio

$219.95

Includes Rapid Rate Desk Charger!

click here to add this item to your shopping cart





SP-7402(UHF)



  • 255 Channel (Dynamic Grouping up to 16)

  • CTCSS/DCSS Encode/Decode

  • 7 Programmable Controls - Up to 13 Separate Functions

  • 8 Character Alhpa Numeric Display

  • Voice Actuated Transmitter (VOX)

  • Die-cast Aluminum Chassis

  • Polycarbonate Cabinet

  • Wide/Narrow Ch Spacing

  • Compact Size (5 9/16" Tall)

  • Battery Saver / Sleep Mode

  • PC Programmable

Also Available:

SP-7102 VHF Version

See Other UHF Portables




Comes complete with the Radio, Li-Polymer 1500 mAh Battery, Rapid rate charger, belt clip, an antenna  & FREE Programming!

Optional Accessories
click here to add this item to your shopping cart Spare 1500 mAh Li-Polymer Battery $ 59.95
click here to add this item to your shopping cart UHF Antenna (400-470 MHz), SMA $ 14.95
click here to add this item to your shopping cart UHF Antenna (440-470 MHz), Stubby SMA $16.95
click here to add this item to your shopping cart Single Slot Rapid Desktop Charger $ 49.95
click here to add this item to your shopping cart Six Unit Gang Charger $ 379.95
click here to add this item to your shopping cart Standard Speaker Microphone $ 39.95
click here to add this item to your shopping cart Heavy Duty Speaker Microphone $ 49.95
click here to add this item to your shopping cart Ear Hook Speaker w/Boom Mic $ 39.95
click here to add this item to your shopping cart Discreet (clear) Ear Speaker w/lapel Mic/PTT $ 39.95
click here to add this item to your shopping cart Ear Hook Speaker w/lapel mic/PTT $ 39.95
click here to add this item to your shopping cart Leather Carrying Case w/Belt Loop/Swivel $ 49.95
click here to add this item to your shopping cart Nylon Carrying Case $ 24.95
click here to add this item to your shopping cart Spring Loaded Belt Clip $ 6.95
click here to add this item to your shopping cart PC Programming Kit (Software & Cable) $ 89.95
click here to add this item to your shopping cart Cloning Cable $ 39.95

Technical Specifications
Frequency Range 400-470 MHz
Operational Bandwidth 12.5/25 MHz
Channels 255
Size, Weight  (w/Battery) 4.7H x 2.1W x 1.3D, 10.22 oz.
Channel Spacing 30 / 25 / 15 / 12.5 kHz
PLL Step 2.5 / 5 / 6.25 kHz
Frequency Stability - PPM < 3
Transmitter
Power Output 1 / 4 Watts
Spurs / Harmonics -60 dB
FM Hum / Noise -40 dB @ 12.5 kHz, -45 dB @ 25 kHz
Receiver
Intermodulation -60dB
Sensitivity (Sinad) .25 uV (12dB)
Audio Out & Distortion 500 mW
Selectivity (Adj Channel) -50/60 dB @ 12.5/25 kHz
